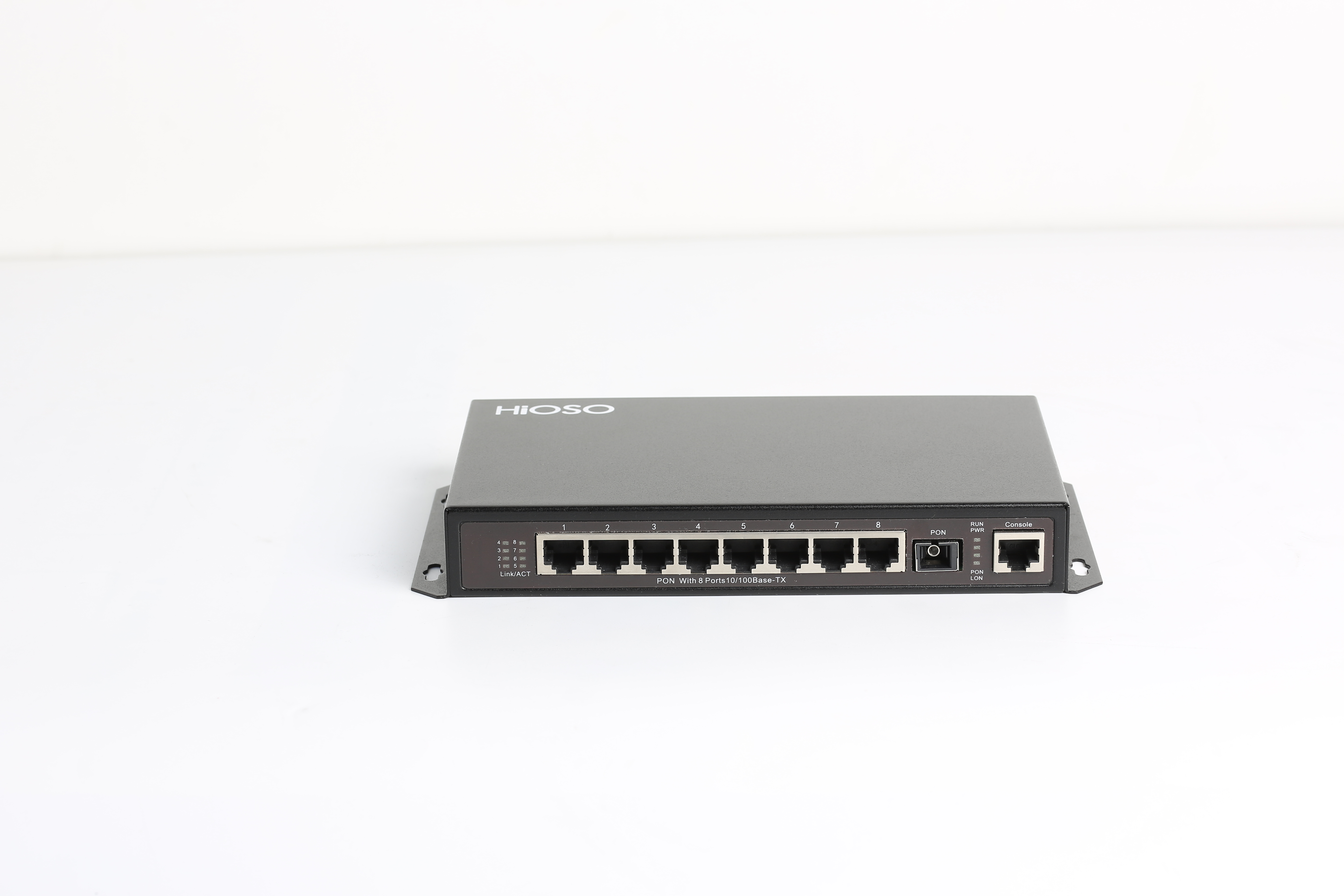

8 10/100M Ethernet Ports Tx 1310nm Wifi GPON ONU Work With GPON OLT

Brand Name : Hioso

Model Number : HA7408H

Certification : CE, RoHS, CCC

Place of Origin : China, Guang dong

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 6000pcs/month

Delivery Time : 2-12 work days

Packaging Details : 38X24X18 CM

Product name : Gpon onu

Warranty : 3 years

Receiving sensitivity : -27dBm

Cache space : 1.25MB

Wavelength : Tx 1310nm/Rx1490nm

Application : FTTH FTTB FTTX Network

Contact Now

8 Ports Industrial Gpon Onu 8 10 / 100M Ethernet Ports Work With GPON OLT

Overview

HA7408H GPON/XPON ONT is designed for fulfilling FTTH ultra-broadband access request of home and SOHO users. HA7408H supplies eight 10/100M Ethernet ports. It is based on the stable and mature GPON/XPON technology, which has high performance/price ratio, and the technology of layer 2 as well.It supports both GPON and EPON OLT. It is highly reliable and easy to maintain, with guaranteed QoS, and fully

compliant to ITU-T G.984 GPON standards.

Feature

Support ITU-T G984 Standard

Auto discovery EPON/GPON OLT

Supports 32 TCONT,256 gemports

Support ONU auto-discovery/Link detection/remote upgrade of software

Integrated remote configuration and maintenance function.

Functions like transceiver diagnostic monitoring, transmitter disable, etc

Fully compatibility with GPON OLT with different chipsets.

Support port monitoring, port mirroring, port rate limiting etc.

Support auto polarity detection of Ethernet ports (AUTO MDIX)

Support VLAN division and user separation to avoid broadcast storm

Support broadcasting storm resistance function

Parameter Specification
Main chip ZTE
Uplink PON interface

1 GPON interface, SC single-mode/single-fibre,

uplink 1 .25Gbps, downlink 2.5Gbps
Downlink LAN interface

8* 10/100Mbps

Full Duplex/Half Duplex, RJ45 connector
Wavelength Tx 1310nm, Rx 1490nm
Optical power 0~+4dBm
Receiving sensitivity -27dBm
Max transmission distance 20 km
Cache space 1.25MB
MTBF 100,000 hours

GPON trait

ITU-T G984 Standard

Supports 32 TCONT,256 gemports

Support the 984 standard AES128 encryption function

Support SBA and DBA

Parameter Specification
Power DC12V/1A (outside power)
Power consumption <12W
Operating temperature -10—55 ℃ wide temperature range-T:-40~75℃
Storage temperature -40—85 ℃
Humidity 5%～90% non-condensing
Dimension 30mm*219mm*119mm
Net weight 0.6Kg

8 10/100M Ethernet Ports Tx 1310nm Wifi GPON ONU Work With GPON OLT

8 10/100M Ethernet Ports Tx 1310nm Wifi GPON ONU Work With GPON OLT
